Horizontal Boring Machine

150000 INR/Piece

Get a Price/Quote

Product Details:

Power 230-380 Volt (v)
Surface Treatment Painted
Color Green
Warranty 1 year
Usage & Applications Industrial
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Horizontal Boring Machine Price And Quantity

Price 150000 INR/Piece
Minimum Order Quantity 1 Piece

Horizontal Boring Machine Product Specifications

Surface Treatment Painted
Color Green
Power 230-380 Volt (v)
Warranty 1 year
Usage & Applications Industrial

Horizontal Boring Machine Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 50 Piece Per Month
Delivery Time 1 Week
Main Domestic Market All India

Product Description

Power Motor

MODEL	PHB-65	PHB-80	PHB-100	PHB-110	PHB-125
Alloy Steel Work Spindle Hardened & Ground - Diameter	65	80	100	110	125
MorseTaper Number	4	5	6	6	6
Max.Longitudinal Movements of Working Spindle	410	510	510		600
Number of Spindle Speeds	9	9	9	9	9
Range of Spindle Speeds - R.P.M.	20 to 300	15 to 300	15 to 300	15 to 250	15 to 250
Longitudinal Work Spindle Feeds Nos.	9	9	9	9	9
Max.Height of The Spindle Axis from Table Surface	800	925	1000	1100	1200
Min.Height of The Spindle Axis from Table Surface	20	25	30	30	30
Dimensions of The Rotary Table	840 x 1050	900 x 1105	1030 x 1375	1100 x 1450	1220 x1675
Longitudinal Table Traverse	1500	1625	1725	1925	2050
Long.Table Traverse Feeds (Including one Rapid)	10	10	10	10	10
Transversal Table Travel Feeds (Including one Rapid)	10	10	10	10	10
Vertical Head Stock Travel Feeds Including one Rapid	4	4	4	4	10
Rotary Table Automatic Feeds (Including one Rapid)	Nil	10	10	10	10
Max.Cross Movement of The Table	910	1000	1100	1300	1500
Max.Distance between Stay Bearing & Facing Head	2150	2400	2690	2800	2950
Facing Head Diameter	450	505	555	600	650
Weight Approximate in kgs. (With packing & Accessories)	7500	9500	11500	14500	18000
Weight Approximate in kgs. (Without packings Accessories)	7000	8500	9500	11000	13500
Power Motor (HP)	3 & 1.5	5 & 2	7.5 & 2	10 & 3	12.5 & 5

3 & 1.5

5 & 2

7.5 & 2

10 & 3

12.5 & 5

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Boring Machine' category

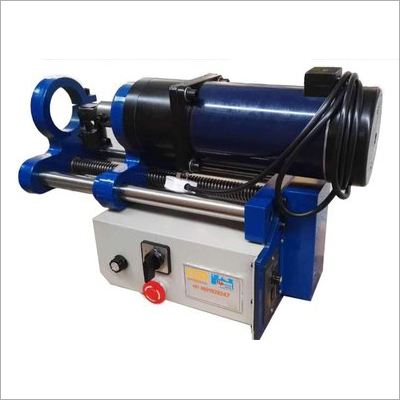

Portable Line Boring Machine Price : 225000 INR/Piece Minimum Order Quantity : 1 Power Source : Electricity Surface Treatment : Painted Color : Blue Warranty : 1 Year Product Type : Other, Boring Machine Usage & Applications : Industrial
